The PAN9028 is a dual band 2.4 GHz and 5 GHz 802.11 a/b/g/n/ac Wi-Fi radio module with integrated Bluetooth BR/EDR/Low Energy (LE), specifically designed for highly integrated and cost-effective applications.
The simultaneous and independent operation of the two standards enables very high data rates (802.11ac) and low-power operation (Bluetooth LE). Integrated power management, a fast dual-core CPU, 802.11i security standard support, and high-speed data interfaces deliver the performance for the speed, reliability, and quality requirements of next generation products.
Tx power calibration data, Wi-Fi, and Bluetooth system parameters are prestored on the one-time-programmable memory of the PAN9028 during production at Panasonic. This simplifies passing the certification process for PAN9028 customers.
PAN9028 Product Specification
The following technical specifications provide an overview of interfaces, radio standards and other key features of the module.
Compare key features and technical specifications of the modules to find the right solution for your application.

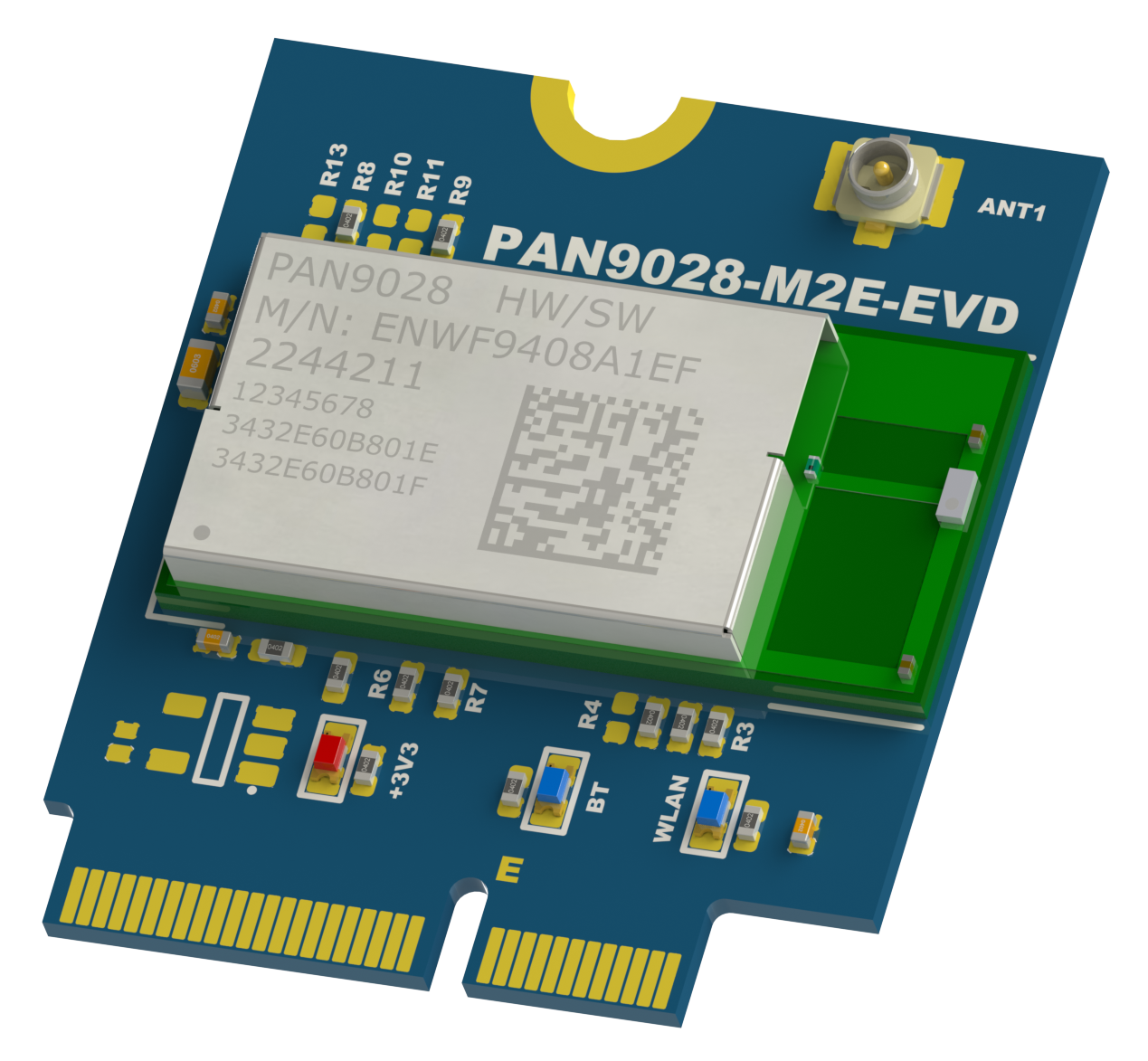

M.2-Evaluation Board
MicroSD Adapter
| P/N | Package includes |
|---|---|
| ENWF9408AMEF | 1x M.2 Evaluation Board with module PAN9028-MR and PMIC (ENWF9408A1EF) |
| ENWF9408AVEF | 1x MicroSD Adapter with module PAN9028-MR and PMIC (ENWF9408A1EF) |
The PAN9028 is certified for
Do you need access to test reports and certification documents for the PAN9028 module? Please fill out the form. Our technical support team will review your request and provide you with the necessary information and files.
