The PAN9019 is a dual-band 2.4 GHz / 5 GHz Wi‑Fi radio module supporting IEEE 802.11 a/b/g/n/ac/ax, featuring integrated Bluetooth BDR/EDR/Low Energy (LE) and optional 802.15.4 connectivity. It is designed for highly integrated, cost‑efficient applications.
The simultaneous and independent operation of Wi‑Fi, Bluetooth LE, and 802.15.4 enables both extremely high data rates with 802.11ax and ultra‑low‑power operation for wireless IoT use cases.
With integrated power management, a high‑performance dual‑core CPU, support for 802.11i/w security standards, and high‑speed data interfaces, the PAN9019 meets the demanding requirements for performance, reliability, and quality of next‑generation products. By consolidating multiple wireless technologies into a single module, it significantly reduces design complexity, testing, and calibration effort, resulting in faster time‑to‑market compared to discrete solutions.
The combination of Wi‑Fi, Bluetooth, and 802.15.4 provides maximum flexibility for industrial devices and smart appliances, enabling high‑throughput applications alongside robust and energy‑efficient connectivity.
WM PAN9019 Product Specification
The following technical specifications provide an overview of interfaces, radio standards and other key features of the module.
Compare key features and technical specifications of the modules to find the right solution for your application.

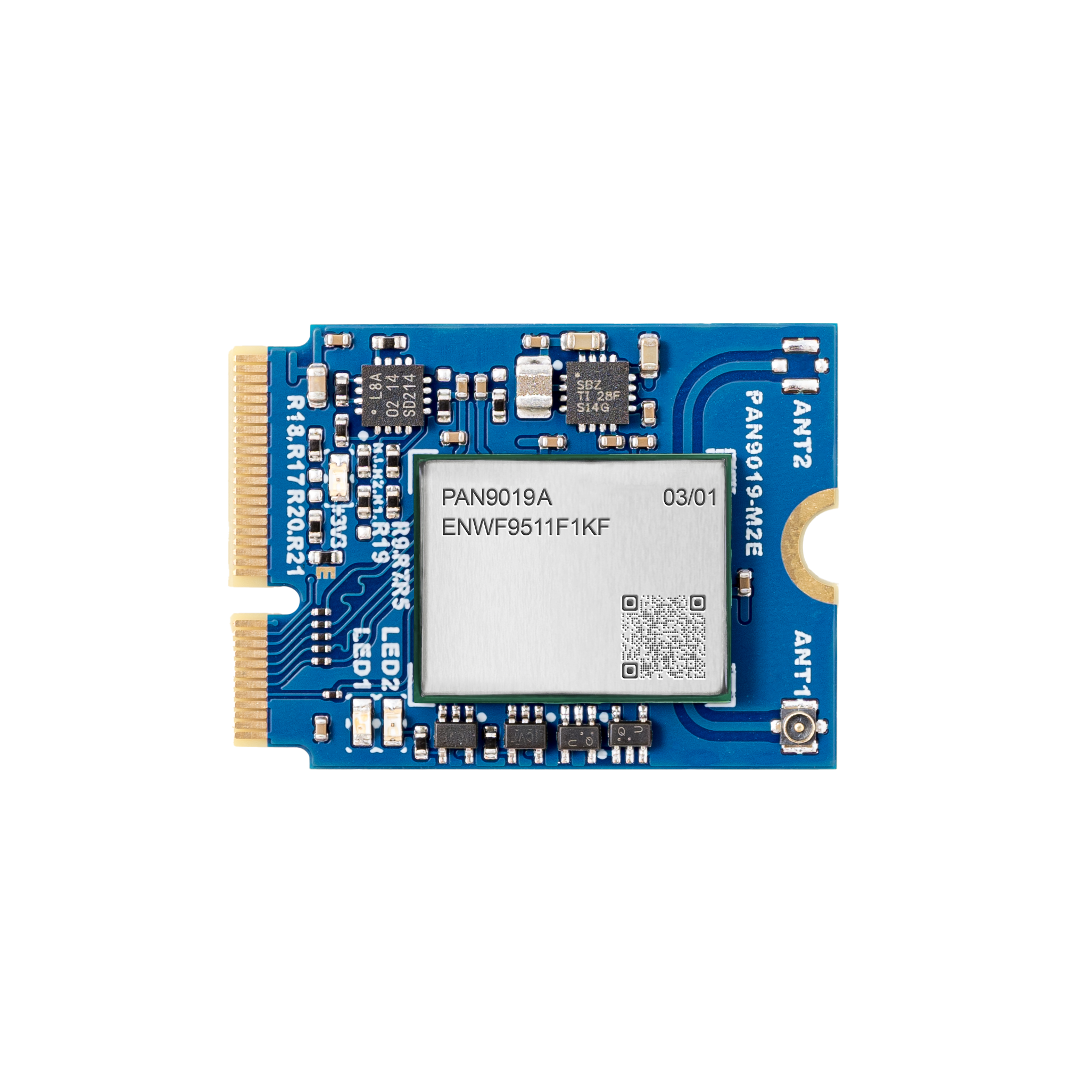

M.2 Evaluation Board
M.2 to mSD Adapter
| P/N | Package includes |
|---|---|
| ENWF9501CMKF | 1x PAN9019 M.2 Key E Card & 1x Taoglas FPC Antenna FXP830.54.0100C |
| ENWF9511CMKF | 1x PAN9019A M.2 Key E Card & 1x Taoglas FPC Antenna FXP830.54.0100C |
| ENWF9000CMKF | 1x M.2 to mSD Adapter with mSD flex cable |
| ENWF9001CMKF | 1x M.2 to RaspberryPi Adapter |
The PAN9019(A) is certified for
To comply with regional regulatory requirements a country specific binary file needs to be applied. The binary file is responsible for e.g. setting available Wi-Fi channels or output power. For further information, please visit the development hub.
