PAN1780 / 70 / 80AT

Chip Antenna

U.FL Connector

Nordic nRF52840

Bluetooth® 5.3 Low Energy

Thread 1.3

Zigbee 3.0

Embedded Module

The PAN1780, PAN1770 and PAN1780-AT are powerful Bluetooth® Low Energy modules all based on the Nordic nRF52840 chipset. They support Bluetooth® 5, Bluetooth mesh, Zigbee, Thread and NFC‑A, delivering high performance, long range and reliable operation even in challenging RF environments.

While the PAN1780 features an integrated antenna, the PAN1770 offers a U.FL connector for external antennas, and the PAN1780‑AT comes with an integrated Bluetooth AT command set for fast and simple integration. This product family gives you maximum flexibility to choose the best fit for your application – without changing the underlying technology.

Development Hub

Ask Support

PAN1780 Product Specification

PDF

PDF | 1.5 MB

Download

Bluetooth 5.3 + 802.15.4

Nordic nRF52840

Antenna Flexibility

Chip Antenna or U.FL connector

Integrated Slow Clock Crystal

32 kHz crystal oscillator

Easy Integration

via optionally integrated BlueRadios AT Command Set

Information

Technical Specs

The following technical specifications provide an overview of interfaces, radio standards and other key features of the module.

Integrated CircuitNordic nRF52840

RF categoryBluetooth 5.3 & 802.15.4

MicrocontrollerARM® Cortex®-M4F

Memory1MB Flash and 256kB RAM

SoftwarenRF Connect SDK and Bare Metal SDK

Tx power max+8 dBm

Power supply1.7 to 5.5

Power consumption Tx4.8 mA @0dBm

Power consumption Rx4.8 mA

Power consumption sleep 1.5 µA (wake-on-RTC)

InterfacesGPIO, UART, QSPI, I2C, I2S, ADC, PDM, PWM, NFC-A, USB2.0

Operating temperature-40 to +85 °C

Antenna optionCeramic Antenna or U.FL connector

Rx sensitivity-95 @ 1Mb/s; -103 @ 125kb/s

Size (l x w x h) 15.6 x 8.7 x 2.0 mm

Zertifizierungen

Production statusMass Production

Standard packaging QTY500 pcs

Product comparison

Modules of the series compared

Compare key features and technical specifications of the modules to find the right solution for your application.

	PAN1780	PAN1780 APP	PAN1780AT	PAN1770	PAN1770 APP
Integrated Circuit	Nordic nRF52840	Nordic nRF52840	Nordic nRF52840	Nordic nRF52840	Nordic nRF52840
Antenna	Chip	Chip	Chip	U.FL connector	U.FL connector
Access Port Protection	–		–	–
AT Command Stack	–	–		–	–
Part Number	ENW89854A1KF	ENW89854A4KF	ENW89854A3KF	ENW89854C1KF	ENW89854C4KF

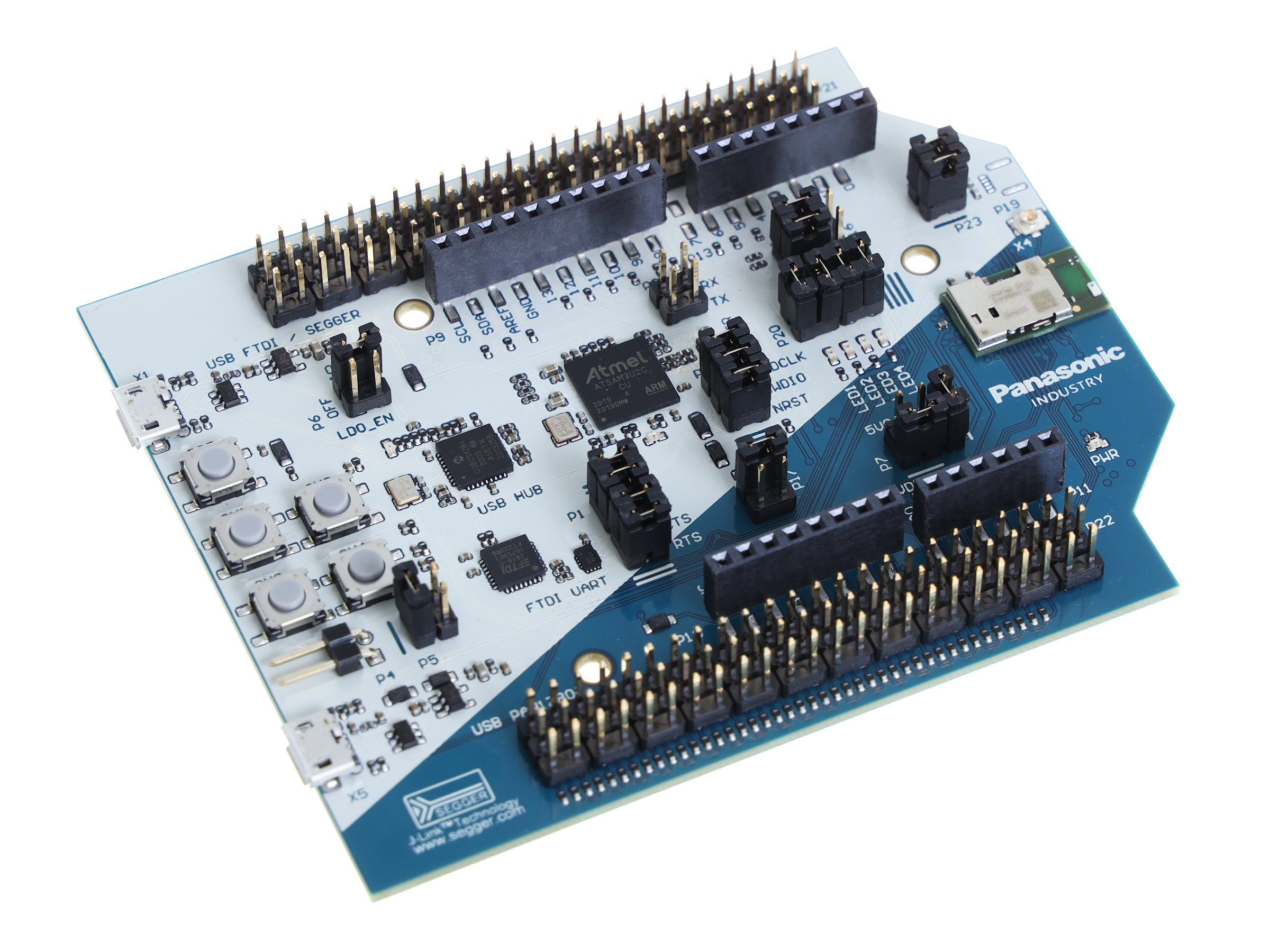

Rapid evaluation made easy.

Evaluation Board

PAN1780, PAN1770 or PAN1780AT module
Segger J-Link on-board Debugger
FTDI UART-USB converter
4 User Buttons
4 User LEDs
Native USB interface
NFC interface
Access to all GPIOs
Arduino UNO R3 pinheader

P/N	Package includes
ENW89854AUKF	1x PAN 1780 Evaluation Board Arduino form factor
ENW89854ASKF	1x PAN 1780 APPROTECT Evaluation Board Arduino form factor
ENW89854AVKF	1x PAN1780AT Evaluation Board with Arduino form factor
ENW89854CXKF	1x PAN1770 Evaluation Board Arduino form factor & 1x W1030 Puls Antenna with cable
ENW89854CZKF	1x PAN1770 APPROTECT Evaluation Board Arduino form factor & 1x W1030 Puls Antenna with cable

Development Hub

Request support or certification documents

The PAN1780 is certified for

Europe: CE RED
UK: UKCA
USA: FCC
Canada: ISED
Japan: MIC
Korea: KCC
China: SRRC
Australia / New Zealand: RCM

The PAN1770 is certified for

Europe: CE RED
UK: UKCA
USA: FCC
Canada: ISED
Wirepas

The PAN1780AT is certified for

Europe: CE RED
UK: UKCA
USA: FCC
Canada: ISED

Do you need access to test reports and certification documents for the PAN1780 series? Please fill out the form. Our technical support team will review your request and provide you with the necessary information and files.
