The PAN B611-1 is a Bluetooth 6.0 Low Energy (LE) module based on the Nordic nRF54L15 single chip controller.
It is available with an on-board chip antenna or external antenna via bottom for easy design-in and facilitated end-certification. The all-in-one SoC including a superset of the most prominent nRF54 Series features combined with more performance and memory, while minimizing current consumption. In addition, the ultra-low current consumption of the PAN B611-1 makes the module an ideal choice for battery powered devices. The small size hybrid castellated holes & LGA footprint design offers the possibility for optical outgoing inspection, 2-layers designs and fast prototyping with hand soldering, while still offering more GPIOs on the bottom if needed.
PAN B611-1 Product Specification
The following technical specifications provide an overview of interfaces, radio standards and other key features of the module.
Compare key features and technical specifications of the modules to find the right solution for your application.
| P/N | Package includes |
|---|---|

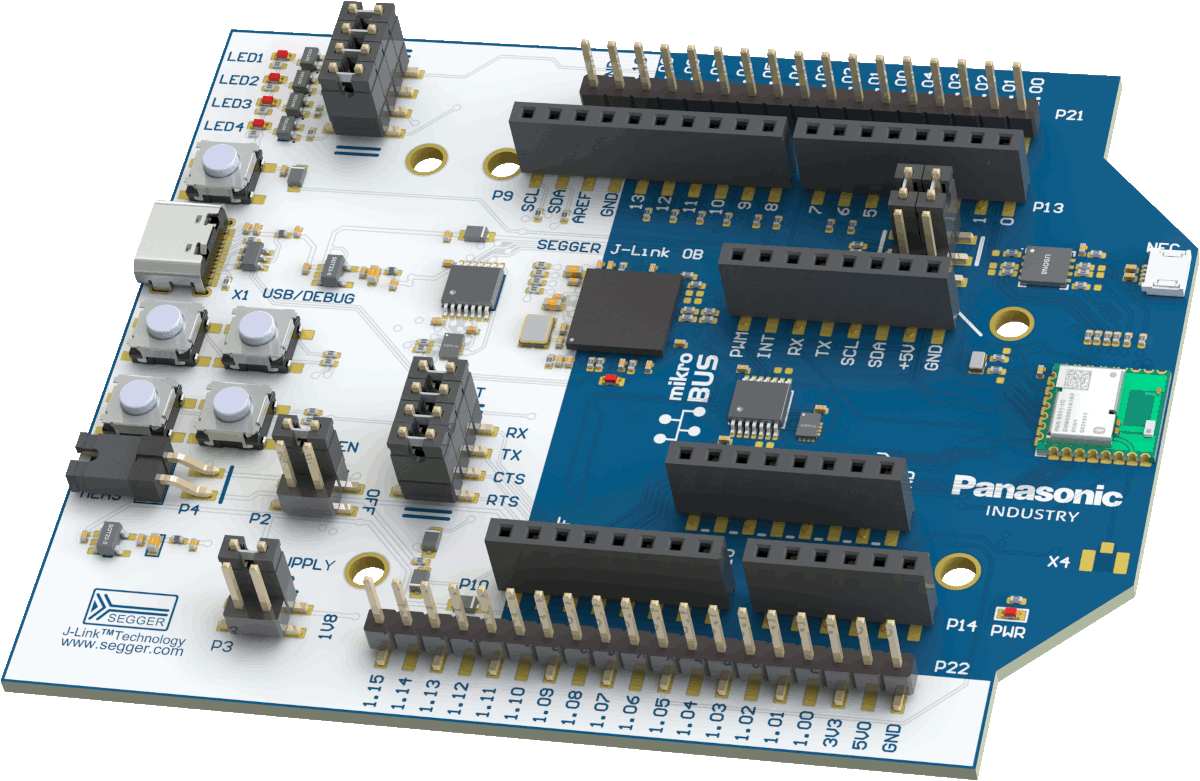

| ENW89861AXKF | 1x PAN B611-1C Evaluation Board with Chip Antenna |
| ENW89861DXKF | 1x PAN B611-1B Evaluation Board with uFL Connector & 1x W1030 Puls Antenna with cable |
The PAN B611 is certified for
Do you need access to test reports and certification documents for the PAN B611 module? Please fill out the form. Our technical support team will review your request and provide you with the necessary information and files.
