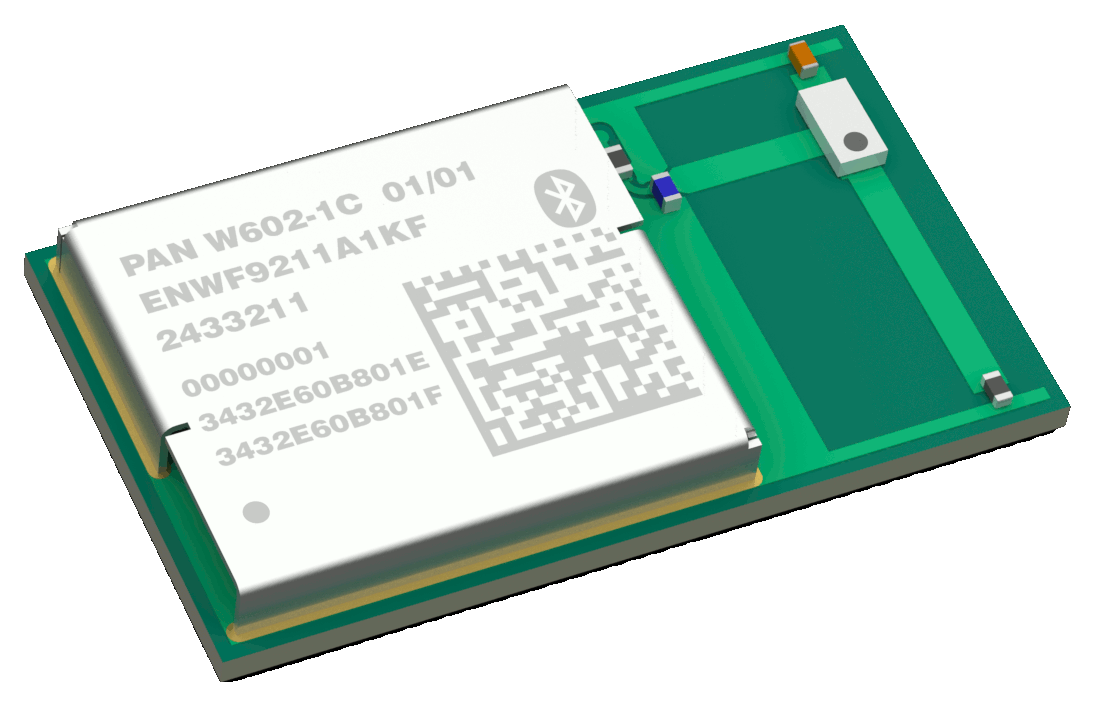

PAN W602-1C🔗
Preliminary Information / Disclaimer
All information shown here is preliminary.
For details what this means for, you can refer to the Disclaimer.
Overview🔗
The PAN W602-1C is based on the Texas Instruments® CC3301 controller.
Block Diagram🔗
Pin Configuration🔗
Pin Assignment🔗
Pin Functions🔗
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A1 | SDIO_CMD | Digital I/O | SDIO Command |
| A2 | SDIO_CLK | Digital I/O | SDIO Clock |
| A3 | SWCLK | Digital Output | Serial Wire Debug Clock |
| A4 | LOGGER | Digital Output | UART TX debug logger |
| A5 | HOST_IRQ_WL | Digital Output | Interrupt request for Wi-Fi / Host wakeup |
| A6 | 3V3 | Power Supply | Connect to 3.3V |
| A7 | GND | Ground Pin | Connect to ground |
| A8 | GND | Ground Pin | Connect to ground |
| A9 | GND | Ground Pin | Connect to ground |
| A10 | GND | Ground Pin | Connect to ground |
| A11 | GND | Ground Pin | Connect to ground |
| A12 | GND | Ground Pin | Connect to ground |
| A13 | BT_WL_ANT | Analog | RF bottom pad |
| A14 | GND | Ground Pin | Connect to ground |
| A15 | GND | Ground Pin | Connect to ground |
| A16 | 1V8 | Power Supply | Connect to 1.8V |
| A17 | SLOW_CLK_IN | Clock Pin | External 32kHz slow clock input |
| A18 | COEX_GRA | Digital Output | Packet traffic arbitration (coexistence) grant signal |
| A19 | COEX_PRI | Digital Input | Packet traffic arbitration (coexistence) priority signal |
| A20 | GPIO1 | General Purpose I/O | General purpose input / output |
| A21 | UART_CTS | Digital Input | UART clear-to-send |
| A22 | UART_TX | Digital Output | UART transmit |
| A23 | GND | Ground Pin | Connect to ground |
| A24 | SDIO_D2 | Digital I/O | SDIO data line 2 |
| A25 | SDIO_D0 | Digital I/O | SDIO data line 0 |
| B1 | SDIO_D1 | Digital I/O | SDIO data line 1 |
| B2 | GND | Ground Pin | Connect to ground |
| B3 | SWDIO | Digital I/O | Serial Wire Data input / output |
| B4 | HOST_IRQ_BLE | Digital Output | Interrupt request for Bluetooth / Host wakeup |
| B5 | 3V3 | Power Supply | Connect to 3.3V |
| B6 | GND | Ground Pin | Connect to ground |
| B7 | GND | Ground Pin | Connect to ground |
| B8 | nRESET | Digital Input | Reset input |
| B9 | GND | Ground Pin | Connect to ground |
| B10 | COEX_REQ | Digital Input | Packet traffic arbitration (coexistence request) signal |
| B11 | UART_RTS | Digital Output | UART ready-to-send |
| B12 | UART_RX | Digital Input | UART receive |
| B13 | SDIO_D3 | Digital I/O | SDIO data line 3 |
| C1 | GND | Ground Pin | Connect to ground |
| C2 | GND | Ground Pin | Connect to ground |
| C3 | GND | Ground Pin | Connect to ground |
| C4 | GND | Ground Pin | Connect to ground |
| C5 | GND | Ground Pin | Connect to ground |
| C6 | GND | Ground Pin | Connect to ground |
| C7 | GND | Ground Pin | Connect to ground |
| C8 | RF_to_ANT | Analog | Antenna bottom pad |
| C9 | GND | Ground Pin | Connect to ground |
| C10 | GND | Ground Pin | Connect to ground |
| C11 | GND | Ground Pin | Connect to ground |
| C12 | GND | Ground Pin | Connect to ground |
| C13 | GND | Ground Pin | Connect to ground |
Function Groups🔗
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A1 | SDIO_CMD | Digital I/O | SDIO Command |
| A2 | SDIO_CLK | Digital I/O | SDIO Clock |
| A24 | SDIO_D2 | Digital I/O | SDIO data line 2 |
| A25 | SDIO_D0 | Digital I/O | SDIO data line 0 |
| B1 | SDIO_D1 | Digital I/O | SDIO data line 1 |
| B13 | SDIO_D3 | Digital I/O | SDIO data line 3 |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A21 | UART_CTS | Digital Input | UART clear-to-send |
| A22 | UART_TX | Digital Output | UART transmit |
| B11 | UART_RTS | Digital Output | UART ready-to-send |
| B12 | UART_RX | Digital Input | UART receive |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A3 | SWCLK | Digital Output | Serial Wire Debug Clock |
| B3 | SWDIO | Digital I/O | Serial Wire Data input / output |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A17 | SLOW_CLK_IN | Clock Pin | External 32kHz slow clock input |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A6 | 3V3 | Power Supply | Connect to 3.3V |
| A16 | 1V8 | Power Supply | Connect to 1.8V |
| B5 | 3V3 | Power Supply | Connect to 3.3V |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A7 | GND | Ground Pin | Connect to ground |
| A8 | GND | Ground Pin | Connect to ground |
| A9 | GND | Ground Pin | Connect to ground |
| A10 | GND | Ground Pin | Connect to ground |
| A11 | GND | Ground Pin | Connect to ground |
| A12 | GND | Ground Pin | Connect to ground |
| A14 | GND | Ground Pin | Connect to ground |
| A15 | GND | Ground Pin | Connect to ground |
| A23 | GND | Ground Pin | Connect to ground |
| B2 | GND | Ground Pin | Connect to ground |
| B6 | GND | Ground Pin | Connect to ground |
| B7 | GND | Ground Pin | Connect to ground |
| B9 | GND | Ground Pin | Connect to ground |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A13 | BT_WL_ANT | Analog | RF bottom pad |
| C1 | GND | Ground Pin | Connect to ground |
| C2 | GND | Ground Pin | Connect to ground |
| C3 | GND | Ground Pin | Connect to ground |
| C4 | GND | Ground Pin | Connect to ground |
| C5 | GND | Ground Pin | Connect to ground |
| C6 | GND | Ground Pin | Connect to ground |
| C7 | GND | Ground Pin | Connect to ground |
| C8 | RF_to_ANT | Analog | Antenna bottom pad |
| C9 | GND | Ground Pin | Connect to ground |
| C10 | GND | Ground Pin | Connect to ground |
| C11 | GND | Ground Pin | Connect to ground |
| C12 | GND | Ground Pin | Connect to ground |
| C13 | GND | Ground Pin | Connect to ground |
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A4 | LOGGER | Digital Output | UART TX debug logger |
| A5 | HOST_IRQ_WL | Digital Output | Interrupt request for Wi-Fi / Host wakeup |
| A18 | COEX_GRA | Digital Output | Packet traffic arbitration (coexistence) grant signal |
| A19 | COEX_PRI | Digital Input | Packet traffic arbitration (coexistence) priority signal |
| A20 | GPIO1 | General Purpose I/O | General purpose input / output |
| B4 | HOST_IRQ_BLE | Digital Output | Interrupt request for Bluetooth / Host wakeup |
| B8 | nRESET | Digital Input | Reset input |
| B10 | COEX_REQ | Digital Input | Packet traffic arbitration (coexistence request) signal |
Host Interfaces🔗
PAN W602-1C uses the following host interfaces for communication:
- SDIO for Wi-Fi
- UART for Bluetooth
The interfaces can be operated independently.
SDIO🔗
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A1 | SDIO_CMD | Digital I/O | SDIO Command |
| A2 | SDIO_CLK | Digital I/O | SDIO Clock |
| A24 | SDIO_D2 | Digital I/O | SDIO data line 2 |
| A25 | SDIO_D0 | Digital I/O | SDIO data line 0 |
| B1 | SDIO_D1 | Digital I/O | SDIO data line 1 |
| B13 | SDIO_D3 | Digital I/O | SDIO data line 3 |
UART🔗
| Number | Pin Name | Pin Type | Description |
|---|---|---|---|
| A21 | UART_CTS | Digital Input | UART clear-to-send |
| A22 | UART_TX | Digital Output | UART transmit |
| B11 | UART_RTS | Digital Output | UART ready-to-send |
| B12 | UART_RX | Digital Input | UART receive |
Detailed Descriptions🔗
Note
All dimensions are in mm.
Dimensions🔗
Footprint🔗
